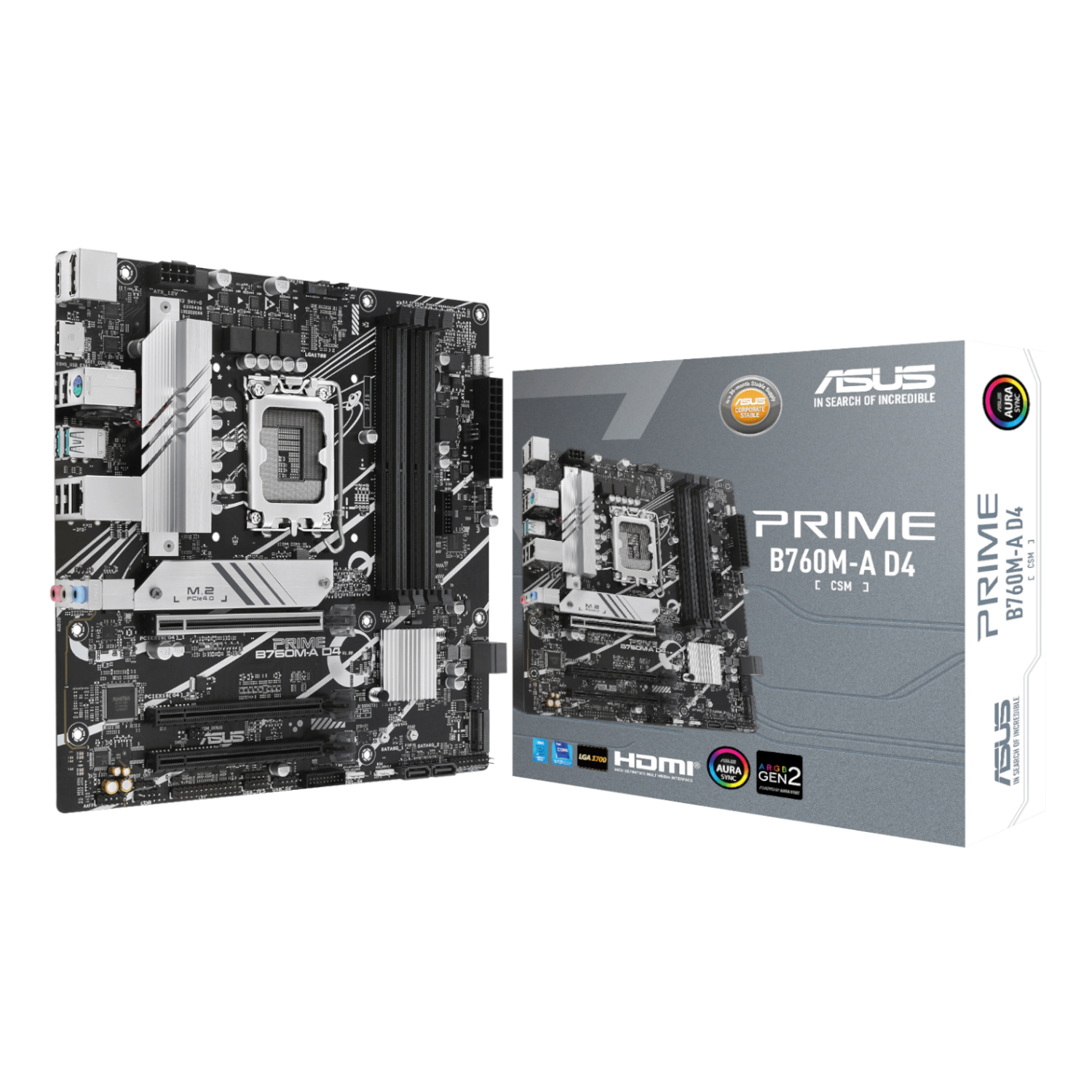

Asus PRIME B760M-A D4 CSM LGA 1700 M-ATX Motherboard

Description

Build for the future of AI and gaming with robust connectivity and advanced cooling for your Intel 14th, 13th, and 12th Gen processors.

Quick Specs

• Unlock AI PC potential with robust processing and connectivity for demanding applications.
• Ready for Intel® 14th, 13th, and 12th Gen processors via the LGA 1700 socket.
• Experience ultrafast data transfer with PCIe 4.0, dual M.2 slots, and high-speed USB ports.
• Maintain optimal temperatures with comprehensive cooling solutions, including VRM and M.2 heatsinks.
• Ensure stable memory performance and signal integrity with ASUS OptiMem II technology.

Engineered for the discerning builder: the Asus PRIME B760M-A D4 CSM LGA 1700 Motherboard

This motherboard is crafted for those who understand that a system's foundation determines its future potential. It is built for the South African PC enthusiast who demands not just current performance, but readiness for tomorrow's innovations. Whether you are assembling a high-performance gaming rig, a powerful workstation for creative endeavours, or stepping into the realm of AI computing, this Asus PRIME B760M-A D4 CSM board provides the stable, reliable, and feature-rich platform necessary to achieve your goals. Its M-ATX form factor offers versatility in case selection without sacrificing critical functionality, making it an ideal Intel motherboard for diverse builds.

Future-proof your build with AI PC readiness

The landscape of computing is evolving, with Artificial Intelligence becoming increasingly integral. This Asus PRIME motherboard is specifically designed to support the demanding requirements of AI PC applications. With its robust power delivery, advanced connectivity, and the capacity to house powerful Intel processors via the LGA 1700 socket, it ensures that your system is not only ready for today's games and tasks but also equipped for the sophisticated computations of future AI-driven software and workflows. As a premier Intel motherboard, it forms the backbone of cutting-edge systems.

Uncompromising performance and connectivity

At the core of this Asus PRIME B760M-A D4 CSM motherboard lies the Intel® B760 Chipset, ready to host Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Pentium® Gold and Celeron® processors. This ensures a broad spectrum of performance capabilities to suit your needs. The ultrafast connectivity is a significant advantage, featuring PCIe 4.0 for lightning-fast graphics and storage, two M.2 slots for high-speed NVMe SSDs, Realtek 2.5Gb Ethernet for superior network performance, and a comprehensive array of USB ports, including a front USB 3.2 Gen 1 Type-C® for convenient device connection, all anchored by the reliable LGA 1700 socket.

Designed for stability and longevity

ASUS understands that a system built for performance must also be built to last. The PRIME B760M-A D4 CSM incorporates comprehensive cooling solutions, including VRM heatsinks to manage processor heat, M.2 heatsinks to keep storage drives at optimal temperatures, and PCH heatsinks for chipset stability. Hybrid fan headers and Fan Xpert 2+ provide intelligent and versatile fan control, ensuring that your components remain cool under load. Furthermore, ASUS OptiMem II technology meticulously optimises memory signal integrity, facilitating improved memory overclocking and stability for demanding applications on your new Intel motherboard.

Customisable aesthetics and control

Beyond raw performance, this motherboard offers avenues for personalisation. Aura Sync RGB lighting, with onboard Addressable Gen 2 headers and an Aura RGB header, allows you to synchronise lighting effects with other Aura Sync-capable hardware, creating a visually stunning and cohesive build. For professional users, ASUS Control Centre Express provides real-time IT monitoring and management software, enhancing data protection and system oversight. This makes the Asus PRIME B760M-A D4 CSM an ideal choice for both enthusiast builds and small business environments, supporting the LGA 1700 socket for robust processing power.

FEATURES:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimisations to preserve signal integrity for improved memory overclocking
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Centre Express: Real-time IT monitoring and management software for enhanced data protection

SPECIFICATIONS:

• CPU:
  • Chipset: Intel® B760 Chipset
  • CPU Compatibility: Supports Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  • CPU Socket: LGA1700
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • *Refer to for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Memory Support:
  • 4 x DIMM slots, up to 128GB total
  • DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)
  • DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.
  • For more information, refer to for the memory support list.
• Graphics:
  • 1 x DisplayPort**
  • 2 x HDMI® ports***
  • * Graphics specifications may vary between CPU types. Please refer to for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI® 2.1.
• Expansion Slots:
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  • 1 x PCIe 4.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
  • Note: To ensure compatibility of the device installed, please refer to for the list of supported peripherals.
• Storage:
  • Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
•  Ethernet:
  • 1 x Realtek 2.5Gb Ethernet
• USB:
  • Rear USB (Total 6 ports)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 10 ports)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports:
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A )
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 2 x HDMI® ports
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • 1 x USB 2.0 header supports 1 additional USB 2.0 port
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrusion function
• Operating System: Windows^® 11, Windows^® 10 64-bit
• Form Factor: mATX
• Dimensions: 24.4 cm x 24.4 cm

WHAT’S IN THE BOX:

• Asus PRIME B760M-A D4 CSM LGA 1700 M-ATX Motherboard x1
• SATA 6Gb/s cables x2
• I/O Shield x1
• M.2 Rubber Package x1
• Screw package for M.2 SSD x1
• ACC Express Activation Key Card x1
• User guide x1
