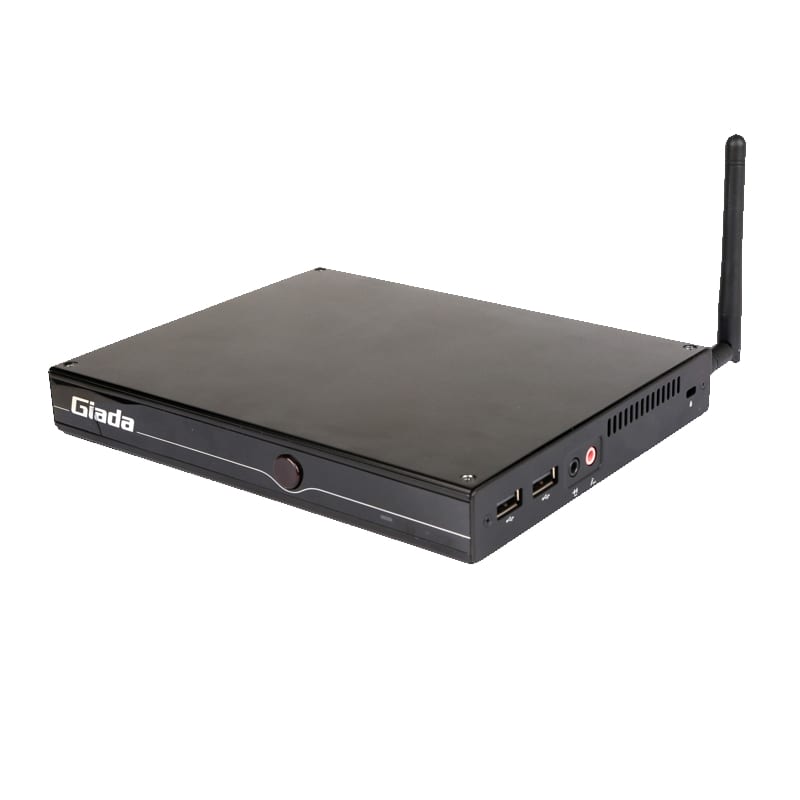

Giada DM6 V1605B 2xDDR4 MSATA/SATA

Description

The cost-effective, book-sized Giada DM6 applies the power and performance of AMD's Ryzen CPUs to your displays  by offering offers smooth and clear 4K video via its four HDMI ports. It can be outfitted with up to 32GB of DDR4 memory and supports both SATA and mSATA storage solutions.

Features:

• AMD Ryzen Processors
• Two DDR4 SO-DIMMs, up to 32GB
• Four HDMI display ports
• Supports 4k Display
• 2.5" SATA and mSATA compatibility
• Two USB3.1 ports and two USB2.0 ports
• One RS232 Port
• RJ45, Mini-PCIe for communication adapaters and a SIM Slot

Specifications:

• Processor
  • CPU: AMD RyzenTM V1605B
  • Frequency: 2.0 GHz, 4 Core/8 Threads
  • BIOS: AMI Source Code
  • Chipset: SOC
• Memory
  • Type: DDR4
  • Socket 2 x SO-DIMM
  • Max Size 32GB
• Graphics
  • GPU RadeonTM GPU 1.1GHz / RadeonTM GPU 1.0GHz
  • Graphic Engine Direct3D 2015, OpenGL 4.5, OpenCL 2.1
  • HDMI 4 x HDMI (Max.3840 x 2160 @60Hz)
• Network
  • Controller: Realtek RTL8111H Gigabit Ethernet
  • Interface: 1 x RJ45
• I/O
  • USB: 2 x USB 3.1, 2 x USB 2.0
  • Serial Port: 1 x RS232
  • Audio 1 x AUDIO-OUT, 1 x MIC-IN
  • Mini-PCIe #1 1 x Full-size Mini-PCIe for mSATA
  • Mini-PCIe #2 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
  • SIM 1 x SIM Slot
• Storage
  • SATA: 1 x 2.5" SATA
  • mSATA: 1 x Full-size mSATA
• JAHC Tech
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On Power Activated Automatically Start
  • RTC Set Up Independently Every day, A Week as a Cycle
• Operation System
  • Windows Windows 10（64-bit）
  • Linux Supported
• Power
  • Power: Type DC-IN
  • Input Voltage: 19V/3.42A
• Mechanical
  • Dimensions: (W × D × H) 189.6mm x 148.3mm x 26mm（7.46" x 5.84" x 1.02"）
  • Construction Metal
  • Mounting Wall Mounting and VESA Mounting (JZ183)
• Environment
  • Operating Temperature 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
  • Relative Humidity 95%@40℃ (non-condensing)
• Certification
  • Certifications: CE, FCC Class B, CCC

What's In The Box:

• DM6 x1
• Drive Disk x1
• User Manual x1
• AC Power Adapter x1
• WiFi Antenna x1C
