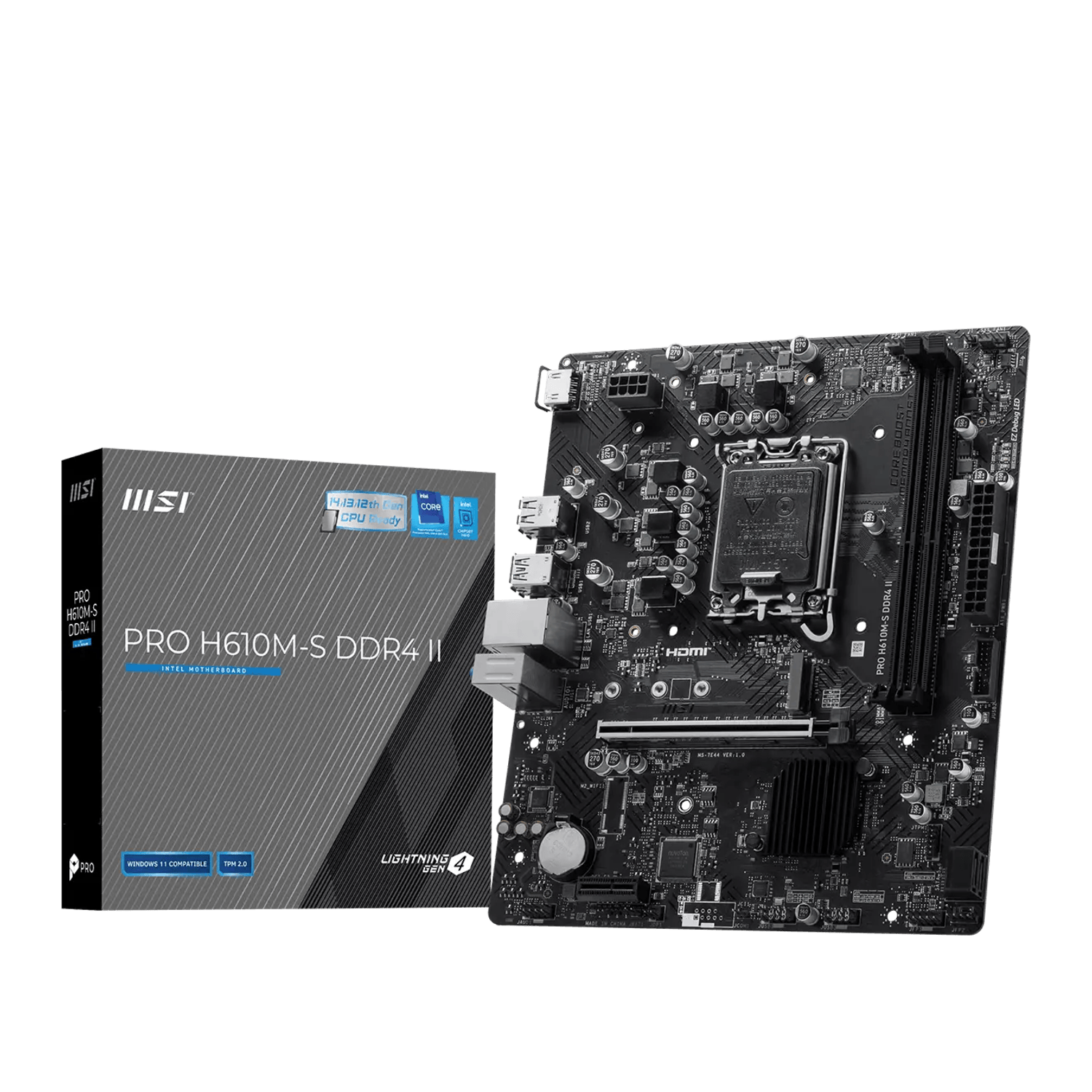

MSI PRO H610M-S DDR4 II LGA1700 M-ATX Motherboard

Description

Intel 12th/13th/14th Gen ready | PCIe 4.0 x16 slot | Up to 64 GB DDR4 | Micro-ATX form factor | 3-year warranty

The MSI PRO H610M-S DDR4 II is a Micro-ATX motherboard built for professionals and system builders who need a reliable, no-fuss foundation for an Intel-based productivity PC. Designed around the Intel H610 chipset and LGA1700 socket, it supports Intel Core 12th, 13th, and 14th Gen processors — as well as Pentium Gold and Celeron — giving you flexibility whether you're building new or upgrading. Two DDR4 memory slots accommodate up to 64 GB of dual-channel RAM, while a PCIe 4.0 x16 slot delivers the bandwidth needed for a capable discrete GPU. An M.2 slot (PCIe 3.0 x4) keeps fast NVMe storage tidy and off the SATA lanes, alongside four SATA 6 Gb/s ports for additional drives. Rear connectivity includes HDMI 1.4 (up to 4K 30 Hz on processors with integrated graphics), Gigabit LAN, and a mix of USB 2.0 and USB 3.2 Gen 1 5 Gbps Type-A ports. MSI's Core Boost power design, EZ Debug LEDs for straightforward troubleshooting, and the MSI Center software suite round out a board engineered to keep your workday running smoothly.

Features

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost: With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio-grade sound quality
• Steel Armour: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

• Socket: LGA1700
• Chipset: Intel H610
• CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Form Factor: Micro-ATX
• Memory:
  • 2x DDR4, Maximum Memory Capacity 64GB
  • Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
• Memory Type: DDR4
• Memory Slots: 2
• Max Memory: 64GB
• Onboard Graphics:
  • 1x HDMI™
  • Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot:
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Audio:
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Storage:
  • 1x M.2
  • M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
  • 2x SATA 6G
• USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
• LAN
  • Realtek® RTL8111H Gigabit LAN
• Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
• Colour: Black/Silver
• Product Dimensions: 23.6 x 20 cm

What's in the Box

• MSI PRO H610M-S DDR4 II LGA1700 M-ATX Motherboard x1
• SATA Cable x1
• I/O Shield x1
• M.2 Screw/Standoff Set x1
• Quick Start Guide x1
